Kaynemaile Framed Screens are designed to fit into framed openings such as doors, windows and cabinetry using our aluminium low profile track. When combined with feature lighting, they are perfect for retail point of sale and commercial design applications. Made from RE/8 mesh, our interior framed screens are available in a range of 14 standard colours meaning there is a beautiful solution for any project.
Featured Projects

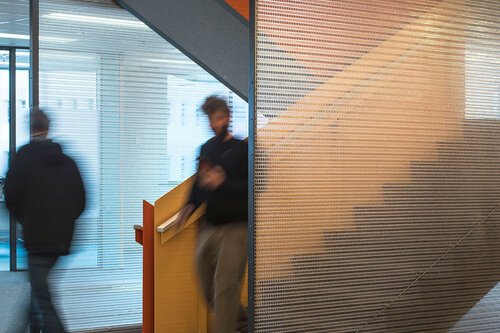

Multi-storey Office Screening
Wellington, New Zealand
A Premium Solution for Air New Zealand Point-of Sale
Auckland Airport, Auckland, New Zealand
Sculptural Bronze Privacy Screening
Brisbane, Australia
System Features
Weight: 3kg m² (0.6lbs/ft2)
Sizes: Unlimited in size.
Colour palette: All Kaynemaile standard colours are suitable for interior use. See below for full colour range.
Custom shapes: Curved screens can be manufactured. Contact Kaynemaile to see what’s possible.
Supplied hardware: Framed Screens are supplied with RE/8 mesh, low profile edge track and mesh saddles along with standard screw fixings for timber, steel and masonry attachment.
Technical Details
Material: Engineering grade Makralon® polycarbonate, fire and UV resistant
Visual Open Area: Approx. 25%
Physical Open Area: Approx. 80%
Weight: 3kg m2 (0.6 lb/ft2)
Maximum Sheet Size: Unlimited height and width
Screen Thickness: 15mm (0.6")
Diameter of ring: 22mm internal, 28mm external
Hanging System
Kaynemaile framed screens utilise our 23mm wide x 10mm high (0.9” x 0.39”) low profile anodised aluminium track at all edges combined with our RE/8 mesh saddles that clip the mesh in under light tension.
Our low-profile track is designed to fix directly to a substrate or framework and comes pre-drilled at 200mm (7.87”) centres for fast install.
Kaynemaile interior framed screens may not be suitable for balustrade or safety from falling applications. Contact us for more information.
Frame Requirements
Kaynemaile framed screens are not self-supporting and are designed to fit within a framed opening or structure (not supplied). The screens are under light tension. For small to medium cabinetry installations most typical framework will be suitable. Larger feature screens will require a suitable substructure.
Technical Specifications
Colour Options
Kaynemaile can be produced in virtually any colour, giving you unlimited options for your exterior or interior project.
We offer a range of standard colours (pictured below) which can be used for interior applications.
All Kaynemaile standard colours are suitable for interior use.
Custom Colours: Do you have a multi-job site or large project you need a custom colour for? Get in touch with us to discuss the options. Minimum quantities apply for custom colours. Not all colours may be suitable for exterior applications. Longer lead times may apply.
Click on the colour swatch to see projects using this mesh colour
RE/8 Architectural Mesh by Kaynemaile is a patented, world-leading innovation. We think the benefits of the product are extraordinary.
Fire Resistant
Our mesh has an ASTM E-84 Class A rating for flame spread & smoke density. We use FR-V0 material that is rated self-extinguishing.
For more information, see our fire rating information here.
Super-Fast Installation
RE/8 mesh is lightweight (3kg per square metre) and goes up fast, cutting down the install time dramatically and saving costs. Our fixing systems are simple and we don’t need the same level of sub-frame as metal products. This means our installed rate is more cost effective than metal or glass panel products.
Eco-conscious Manufacturing
RE/8 architectural mesh is comprised of an industry-first ISCC PLUS Bio-circular Makrolon RE by Covestro, a leading global producer of advanced polymers.
See more on our sustainability page.
10 Year Warranty
Kaynemaile products have a 10 year standard warranty. RE/8 mesh is UV stabilised using inorganic colours for long term stability and full recyclability.
